EFI Conversion with Megasquirt - ECU

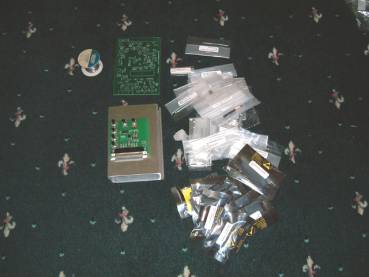

Megasquirt as it arrived. You can also buy them fully assembled. I wanted to build it myself and really
enjoyed the way you build the power supply and communications parts first, then
hook it up to your PC to make sure it works, then add sections, plugging into
the PC at each stage to check that it works.
It is worth mentioning that if you have not done this kind of thing
before, it is a bit complicated for a first project!

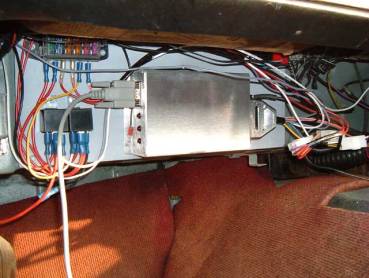

ECU and additional fuse and relay
panel.
The Megasquirt box, fuel pump and
master relays and fuse box.
All attached to a back-plate and
fixed to the bulkhead under the dash.
This is a dry, reasonably well-ventilated position that allows easy
access to plug the lap-top in.
